KT1200 - 4PIN LSOP PHOTOTRANSISTOR

KT1200 Description

cosmo KT1200 Series 4PIN LSOP PHOTODARLINGTON PHOTOCOUPLER * .
The KT1200 series consist of a photo darlington optically coupled to a gallium arsenide infrared-emitting diode in a 4 pin LSOP wide body package.

KT1200 Features

* a high current transfer ratio, low coupling capacitance and high isolation voltage.
* Schematic 1 2 4 3
* Features 1. Halogen free 2. Pb free and RoHS compliant 3. High isolation voltage 5000Vrms 4. Opaque type, SMD low profile 4 lead package 5. High current transfer ratio (CTR=2000%TYP. @

KT1200 Applications

* System appliances, measuring instruments
* Industrial robots
* Copiers, automatic vending mac

📥 Download Datasheet

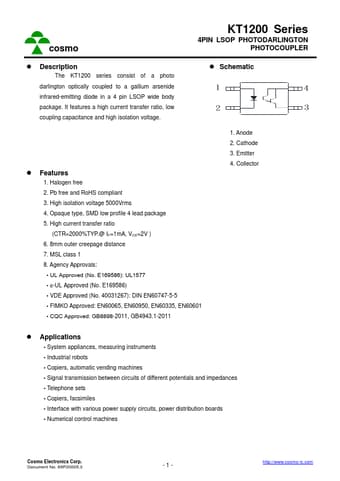

Preview of KT1200 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
KT1200
Manufacturer
Cosmo
File Size
283.42 KB
Datasheet
KT1200-Cosmo.pdf
Description
4PIN LSOP PHOTOTRANSISTOR
