KTLP3506L, KTLP3506 Datasheet - Cosmo

KTLP3506L 8PIN RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER

The KTLP3506 series consist of a GaAs infrared emitting diode optically coupled to an * Schematic 1 non-zero-crossing silicon bilateral TRIAC and a main output power TRIAC. These devices isolate low voltage logic from 115/240 VAC lines to provide random phase control of high current TRIACs or .

KTLP3506L Features

* 1. Pb free and RoHS compliant 2. 600V peak blocking voltage 3. On-state R.M.S Current 0.5A 4. Simplifies logic control of 115/240 VAC power 5. Non zero voltage crossing 6. Isolation voltage between input and output (Viso：5300Vms) 7. MSL class 1 8. Agency Approvals：

* UL Approved (No.

KTLP3506_COSMOElectronicsCorporation.pdf

This datasheet PDF includes multiple part numbers: KTLP3506L, KTLP3506. Please refer to the document for exact specifications by model.

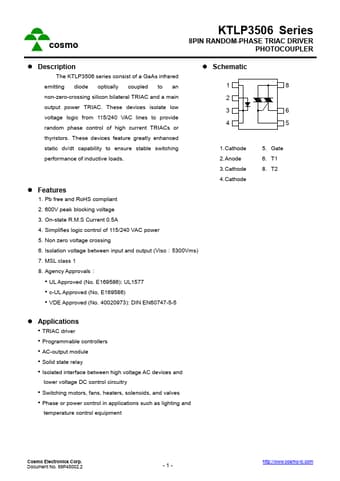

KTLP3506L Datasheet Preview Page 2 KTLP3506L Datasheet Preview Page 3

Datasheet Details

Part number:

KTLP3506L, KTLP3506

Manufacturer:

Cosmo

File Size:

243.65 KB

Description:

8pin random-phase triac driver photocoupler.

Note:

This datasheet PDF includes multiple part numbers: KTLP3506L, KTLP3506.
Please refer to the document for exact specifications by model.
