C3D06060A - Silicon Carbide Schottky Diode

C3D06060A Description

C3D06060A Silicon Carbide Schottky Diode VRRM = 600 V Z-Rec™ Rectifier .

C3D06060A Features

* Package IF (TC=135˚C) = 8.5 A Qc = 16 nC
* 600-Volt Schottky Rectifier Zero Reverse Recovery Current Zero Forward Recovery Voltage High-Frequency Operation Temperature-Independent Switching Behavior Extremely Fas

C3D06060A Applications

* Switch Mode Power Supplies Power Factor Correction Motor Drives Part Number C3D06060A Package TO-220-2 Marking C3D06060 Maximum Ratings (TC = 25 ˚C unless otherwise specified) Symbol VRRM VRSM VDC IF Parameter Repetitive Peak Reverse Voltage Surge Peak

📥 Download Datasheet

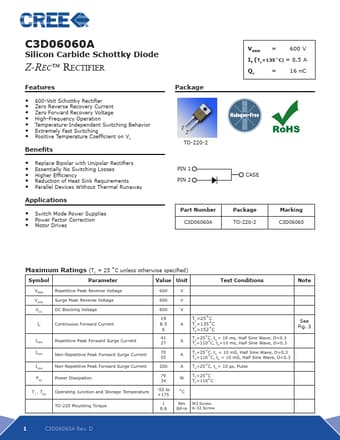

Preview of C3D06060A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
C3D06060A
Manufacturer
Cree
File Size
758.76 KB
Datasheet
C3D06060A-Cree.pdf
Description
Silicon Carbide Schottky Diode
