CS9236 - SINGLE-CHIP WAVETABLE MUSIC SYNTHESIZER

CS9236 Description

CS9236 Single-Chip Wavetable Music Synthesizer .
The CS9236 is a complete General MIDI wavetable music synthesizer on a single integrated circuit.

CS9236 Applications

* including multimedia PCs, game machines, karaoke, and low-cost musical instruments and MIDI sound modules. ORDERING INFORMATION CS9236-CL 0° to 70°C CS9236-CQ 0° to 70°C ____ PDN ____ RST
* Single low-cost device includes MIDI controller, synthesis engine, effects processing, RAM, and sam

📥 Download Datasheet

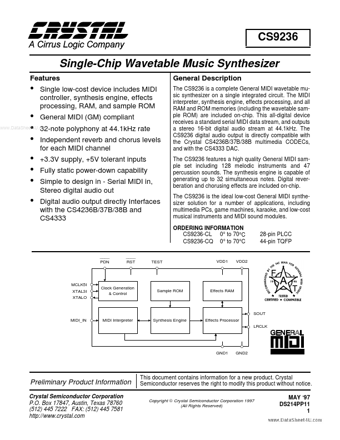

Preview of CS9236 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CS9236
Manufacturer
Crystal
File Size
377.31 KB
Datasheet
CS9236_Crystal.pdf
Description
SINGLE-CHIP WAVETABLE MUSIC SYNTHESIZER
