CS9211 Datasheet - National Semiconductor

Graphics Companion Flat Panel Display Controller

CS9211 Features

* s Supports most SVGA DSTN panels and the VESA FPDI (Flat Panel Display Interface) Revision 1.0 Spe

CS9211 General Description

The National Semiconductor® Geode™ CS9211 graphics companion is suitable for systems that use any GX-series processor (e.g., GX1, GXLV, GXm) along with the CS5530A I/O companion, also members of the Geode family of products. The CS9211 converts the digital pixel stream output of the CS5530A to the d.

CS9211 Datasheet (498.47 KB)

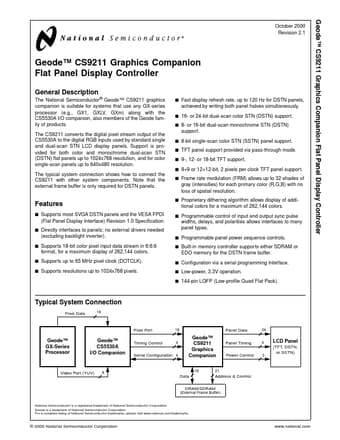

CS9211 Datasheet Preview — Preview of CS9211 PDF

Datasheet Details

Part number:

CS9211

Manufacturer:

National Semiconductor

File Size:

498.47 KB

Description:

Graphics companion flat panel display controller.
Geode™ CS9211 Graphics Companion Flat Panel Display Controller October 2000 Revision 2.1 Geode™ CS9211 Graphics Companion Flat Panel Display Control.
