CS9210

Geode CS9210 Graphics Companion DSTN Controller

CS9210 Features

*  18-bit color support for digital pixel input  65 MHz pixel clock operation supports up to 1024x768 panels  Simultaneous CRT and DSTN display with up to 75 Hz refresh rate Geode™ CS9210 System Connection Example Pixel Data 18 Geode™ GXm or GXLV Processor Pixel Port 24 Addr Control 13 16 1

CS9210 General Description

The CS9210 graphics companion is suitable for systems that use either the GXLV or GXm processor along with the CS5530 I/O companion; all members of the National Semiconductor® Geode™ family of products. The CS9210 converts the digital RGB output stream to the digital graphics input stream required b.

CS9210 Datasheet (776.17 KB)

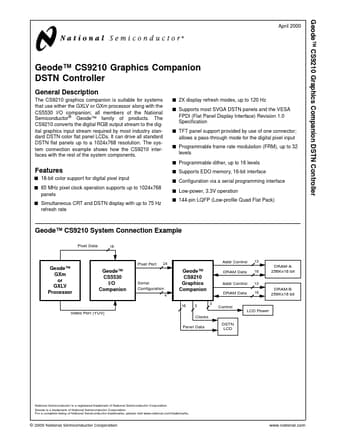

Preview of CS9210 PDF

Datasheet Details

Part number:

CS9210

Manufacturer:

National Semiconductor

File Size:

776.17 KB

Description:

Geode cs9210 graphics companion dstn controller.
