CS9202

Micropower 3.3 V / 100 mA Linear Regulator

CS9202 Features

* NOCAP Low Quiescent Current (450 mΑ typ. @ 100 mA load) 3.3 V, ±2% Output 100 mA Output Current Capability Fault Protection

* 74 V Peak Transient Voltage

* 15 V Reverse Voltage

* Short Circuit

* Thermal Shutdown

* Overvoltage Shutdown

* Intern

CS9202 General Description

Package Lead Number SO

*8 1 2, 3, 6, 7 4, 5 8 Lead Symbol VOUT GND NC VIN Function 3.3 V, ± 2%, 100 mA output. Ground. No connection. Input voltage. http://onsemi.com 2 CS9202 TYPICAL PERFORMANCE CHARACTERISTICS 14 12 Load Regulation (mV) 10 8 6 4 2 0

*2 0 10 20 30 40 50 60 70 80 90.

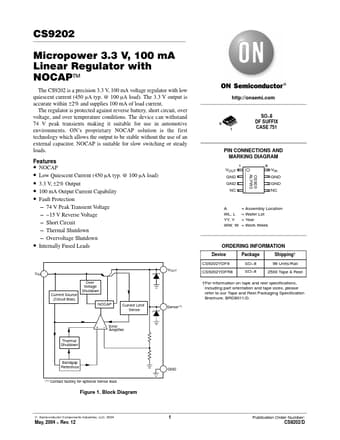

CS9202 Datasheet (61.14 KB)

Preview of CS9202 PDF

Datasheet Details

Part number:

CS9202

Manufacturer:

ON Semiconductor ↗

File Size:

61.14 KB

Description:

Micropower 3.3 v / 100 ma linear regulator.
CS9202 Micropower 3.3 V, 100 mA Linear Regulator with NOCAP™ The CS9202 is a precision 3.3 V, 100 mA voltage regulator with low quiescent current (450.
