CMD233

2- 20 GHz Distributed Low Noise Amplifier

CMD233 Features

* Wide bandwidth

* Single positive supply voltage

* Low noise figure

* Small die size Description The CMD233 is a wideband GaAs MMIC low noise amplifier ideally suited for military, space and communications systems where small size and low noise figure are needed over a wide bandwidt

CMD233 General Description

The CMD233 is a wideband GaAs MMIC low noise amplifier ideally suited for military, space and communications systems where small size and low noise figure are needed over a wide bandwidth. At 10 GHz the device delivers greater than 9 dB of gain with a corresponding noise figure of 4.5 dB and an outp.

CMD233 Datasheet (273.91 KB)

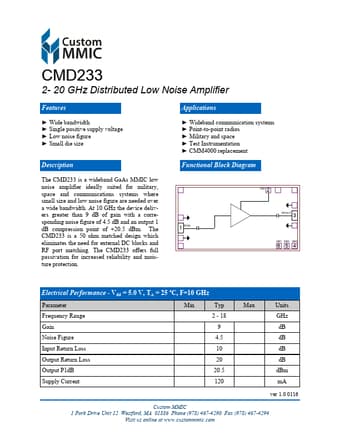

Preview of CMD233 PDF

Datasheet Details

Part number:

CMD233

Manufacturer:

Custom MMIC

File Size:

273.91 KB

Description:

2- 20 ghz distributed low noise amplifier.
