CMD235C4

DC-18 GHz SP5T Non-reflective Switch

CMD235C4 Features

* Low loss broadband performance

* High isolation

* Non-reflective design

* Integrated 3:8 TTL decoder

* Pb-free RoHs compliant 4x4 SMT package Description The CMD235C4 is a broadband MMIC SP5T switch housed in a leadless 4x4 mm surface mount package. The CMD235C4 covers DC to 18

CMD235C4 General Description

The CMD235C4 is a broadband MMIC SP5T switch housed in a leadless 4x4 mm surface mount package. The CMD235C4 covers DC to 18 GHz and offers a low insertion loss of 2.5 dB and high isolation of 44 dB at 10 GHz. The switch also includes an on board binary decoder circuit which reduces the number of re.

CMD235C4 Datasheet (265.67 KB)

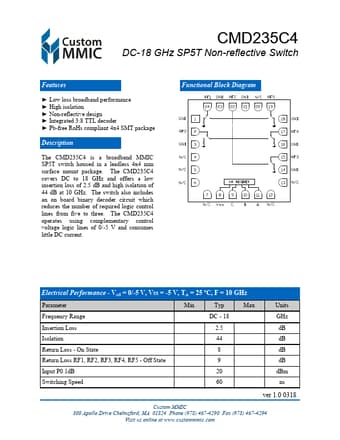

CMD235C4 Datasheet Preview — Preview of CMD235C4 PDF

Datasheet Details

Part number:

CMD235C4

Manufacturer:

Custom MMIC

File Size:

265.67 KB

Description:

Dc-18 ghz sp5t non-reflective switch.
