CY7C374I - 128-Macrocell Flash CPLD

Name: CY7C374I
SKU: CY7C374I-518685

Cypress Semiconductor

📥 Download Datasheet

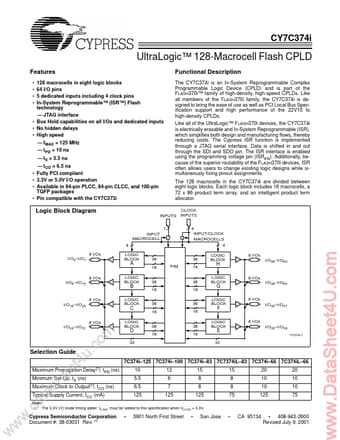

CY7C374I Datasheet Preview — Preview of CY7C374I PDF

Datasheet Details

Part number	CY7C374I
Manufacturer	Cypress Semiconductor
File Size	416.10 KB
Description	128-Macrocell Flash CPLD
Datasheet	CY7C374I_CypressSemiconductor.pdf

CY7C374I Product details

Description

The CY7C374i is an In-System Reprogrammable Complex Programmable Logic Device (CPLD) and is part of the FLASH370i™ family of high-density, high-speed CPLDs.

Features

128 macrocells in eight logic blocks 64 I/O pins 5 dedicated inputs including 4 clock pins In-System Reprogrammable™ (ISR™) Flash technology.
JTAG interface.
Bus Hold capabilities on all I/Os and dedicated inputs.
No hidden delays.
High speed.
fMAX = 125 MHz.
tPD = 10 ns.
tS = 5.5 ns.
tCO = 6.5 ns Fully PCI compliant 3.3V or 5.0V I/O operation Av.
