CY7C4255V - 32K/64K x 18 Low Voltage Deep Sync FIFOs

Product Overview

Cypress Semiconductor

📥 Download Datasheet

CY7C4255V 32K/64K x 18 Low Voltage Deep Sync FIFOs by Cypress Semiconductor - Datasheet Preview — Datasheet preview – CY7C4255V

Datasheet Details

Part number	CY7C4255V
Manufacturer	Cypress Semiconductor
File Size	406.73 KB
Description	32K/64K x 18 Low Voltage Deep Sync FIFOs
Datasheet	CY7C4255V Datasheet
Note	This datasheet PDF includes multiple part numbers: CY7C4255V, CY7C4275V. Please refer to the document for exact specifications by model.

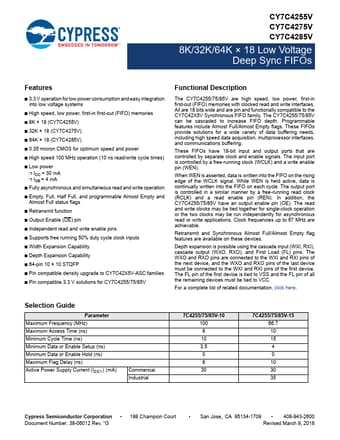

Additional preview pages of the CY7C4255V datasheet.

Product details

Features

3.3 V operation for low power consumption and easy integration into low voltage systems.
High speed, low power, first-in first-out (FIFO) memories.
8K × 18 (CY7C4255V).
32K × 18 (CY7C4275V).
64K × 18 (CY7C4285V).
0.35 micron CMOS for optimum speed and power.
High speed 100 MHz operation (10 ns read/write cycle times).
Low power.
ICC = 30 mA.
ISB = 4 mA.
Fully asynchronous and simultaneous read and write operation.
Empty, Full, Half Ful.
