CY7C4282V - (CY7C4282V / CY7C4292V) 64K/128Kx9 Low Voltage Deep Sync FIFOs

Description

The CY7C4282V/92V are high-speed, low-power, first-in firstout (FIFO) memories with clocked read and write interfaces.

All devices are 9 bits wide.

The CY7C4282V/92V can be cascaded to increase FIFO depth.

Features

  • 3.3V operation for low power consumption and easy integration into low-voltage systems.
  • High-speed, low-power, first-in first-out (FIFO) memories.
  • 64K x 9 (CY7C4282V).
  • 128K x 9 (CY7C4292V).
  • 0.35 micron CMOS for optimum speed/power.
  • High-speed, Near Zero Latency (True Dual-Ported Memory Cell), 100-MHz operation (10 ns read/write cycle times).
  • Low power.
  • ICC = 25 mA.

📥 Download Datasheet

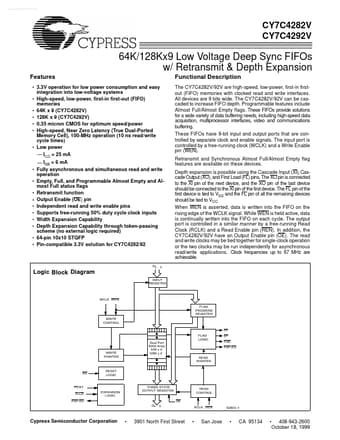

Datasheet preview – CY7C4282V

Datasheet Details

Part number CY7C4282V
Manufacturer Cypress (now Infineon)
File Size 262.28 KB
Description (CY7C4282V / CY7C4292V) 64K/128Kx9 Low Voltage Deep Sync FIFOs
Datasheet download datasheet CY7C4282V Datasheet
Additional preview pages of the CY7C4282V datasheet.
