CY7C43682

1K/4K/16K x36 x2 Bidirectional Synchronous FIFO

CY7C43682 Features

* High-speed, low-power, bidirectional, First-In, First-Out (FIFO) memories

* 1Kx36x2 (CY7C43642)

* 4Kx36x2 (CY7C43662)

* 16Kx36x2 (CY7C43682)

* 0.35-micron CMOS for optimum speed/power

* High speed 133-MHz operation (7.5-ns read/write cycle times)

CY7C43682 General Description

The CY7C436X2 is a monolithic, high-speed, low-power, CMOS Bidirectional Synchronous (clocked) FIFO memory which supports clock frequencies up to 133 MHz and has read access times as fast as 6 ns. Two independent 1K/4K/16K x 36 dual-port SRAM FIFOs on board each chip buffer data in opposite directio.

CY7C43682 Datasheet (474.12 KB)

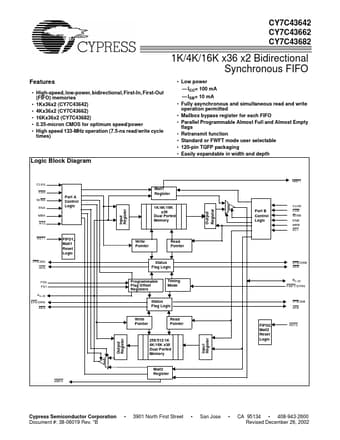

Preview of CY7C43682 PDF

Datasheet Details

Part number:

CY7C43682

Manufacturer:

Cypress Semiconductor

File Size:

474.12 KB

Description:

1k/4k/16k x36 x2 bidirectional synchronous fifo.
