CY7C43642AV - 3.3V 1K/4K/16K x36 x2 Bidirectional Synchronous FIFO

Cypress Semiconductor

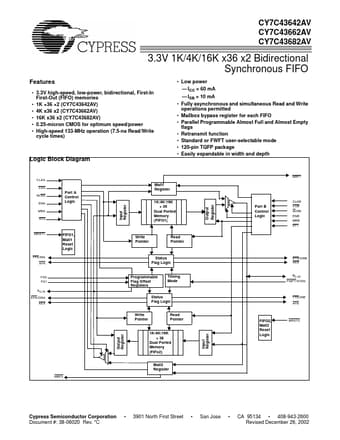

CY7C43642AV Datasheet Preview — Preview of CY7C43642AV PDF

Datasheet Details

Part number	CY7C43642AV
Manufacturer	Cypress Semiconductor
File Size	482.26 KB
Description	3.3V 1K/4K/16K x36 x2 Bidirectional Synchronous FIFO
Datasheet	CY7C43642AV_CypressSemiconductor.pdf

CY7C43642AV Product details

Description

The CY7C436X2AV is a monolithic, high-speed, low-power, CMOS Bidirectional Synchronous FIFO memory that supports clock frequencies up to 133 MHz and has Read access times as fast as 6 ns.

Features

3.3V high-speed, low-power, bidirectional, First-In First-Out (FIFO) memories.
1K ×36 ×2 (CY7C43642AV).
4K x36 x2 (CY7C43662AV).
16K x36 x2 (CY7C43682AV).
0.25-micron CMOS for optimum speed/power.
High-speed 133-MHz operation (7.5-ns Read/Write cycle times).
Low power.
ICC = 60 mA.
ISB = 10 mA.
Fully asynchronous and simultaneous Read and Write operations permitted.
Mailbox bypass register for eac.
