CY7C43666AV - 3.3V 1K 4K 16K x 36 x 18 x 2 Tri Bus FIFO

Cypress Semiconductor

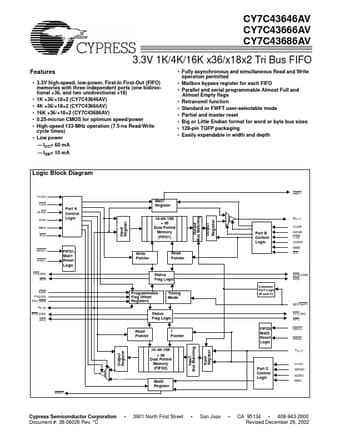

CY7C43666AV Datasheet Preview — Preview of CY7C43666AV PDF

Datasheet Details

Part number	CY7C43666AV
Manufacturer	Cypress Semiconductor
File Size	644.67 KB
Description	3.3V 1K 4K 16K x 36 x 18 x 2 Tri Bus FIFO
Datasheet	CY7C43666AV_CypressSemiconductor.pdf

CY7C43666AV Product details

Description

The CY7C436X6AV is a monolithic, high-speed, low-power, CMOS Bidirectional Synchronous FIFO memory that supports clock frequencies up to 133 MHz and has Read access times as fast as 6 ns.

Features

3.3V high-speed, low-power, First-In First-Out (FIFO) memories with three independent ports (one bidirectional ×36, and two unidirectional ×18).
1K ×36/×18×2 (CY7C43646AV).
4K ×36/×18×2 (CY7C43666AV).
16K ×36/×18×2 (CY7C43686AV).
0.25-micron CMOS for optimum speed/power.
High-speed 133-MHz operation (7.5-ns Read/Write cycle times).
Low power.
ICC= 60 mA.
ISB= 10 mA.
Fully asynchronous and simultaneous Read.
