CY7C43646AV

3.3V 1K 4K 16K x 36 x 18 x 2 Tri Bus FIFO

CY7C43646AV Features

* 3.3V high-speed, low-power, First-In First-Out (FIFO) memories with three independent ports (one bidirectional ×36, and two unidirectional ×18)

* 1K ×36/×18×2 (CY7C43646AV)

* 4K ×36/×18×2 (CY7C43666AV)

* 16K ×36/×18×2 (CY7C43686AV)

* 0.25-micron CMOS for opt

CY7C43646AV General Description

The CY7C436X6AV is a monolithic, high-speed, low-power, CMOS Bidirectional Synchronous FIFO memory that supports clock frequencies up to 133 MHz and has Read access times as fast as 6 ns. Two independent 1K/4K/16K × 36 dual-port SRAM FIFOs on board each chip buffer data in opposite directions. The C.

CY7C43646AV Datasheet (644.67 KB)

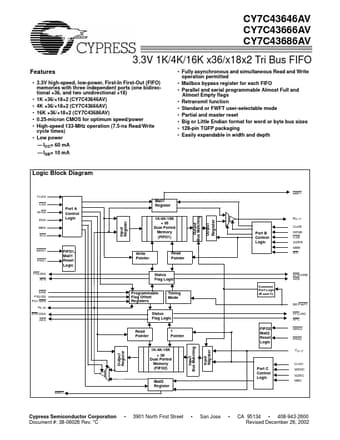

Preview of CY7C43646AV PDF

Datasheet Details

Part number:

CY7C43646AV

Manufacturer:

Cypress Semiconductor

File Size:

644.67 KB

Description:

3.3v 1k 4k 16k x 36 x 18 x 2 tri bus fifo.
