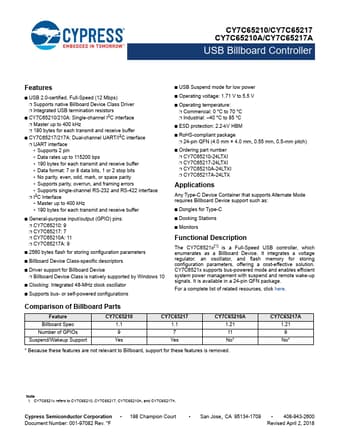

CY7C65210 Datasheet Preview — Preview of CY7C65210 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: CY7C65210
Manufacturer: Cypress Semiconductor
File Size: 273.30 KB
Datasheet: CY7C65210-CypressSemiconductor.pdf
Description: USB Billboard Controller

CY7C65210 Product details

Features

USB 2.0-certified, Full-Speed (12 Mbps).
Supports native Billboard Device class driver.
Integrated USB termination resistors.
CY7C65210: Single channel I2C interface.
Master up to 400 KHz.
190 bytes for each transmit and receive buffer.
CY7C65217: Dual channel UART/I2C interface.
UART interface.
Supports 2 pin.
Data rates up to 115200 bps.
190 bytes for each transmit and receive buffer.
Data format: 7 or 8 data bits, 1.
