CY7C65223 - USB-UART single-channel bridge controller

Infineon

📥 Download Datasheet

CY7C65223 Datasheet Preview — Preview of CY7C65223 PDF

Datasheet Details

Part number: CY7C65223
Manufacturer: Infineon ↗
File Size: 323.23 KB
Datasheet: CY7C65223-Infineon.pdf
Description: USB-UART single-channel bridge controller

CY7C65223 Product details

Description

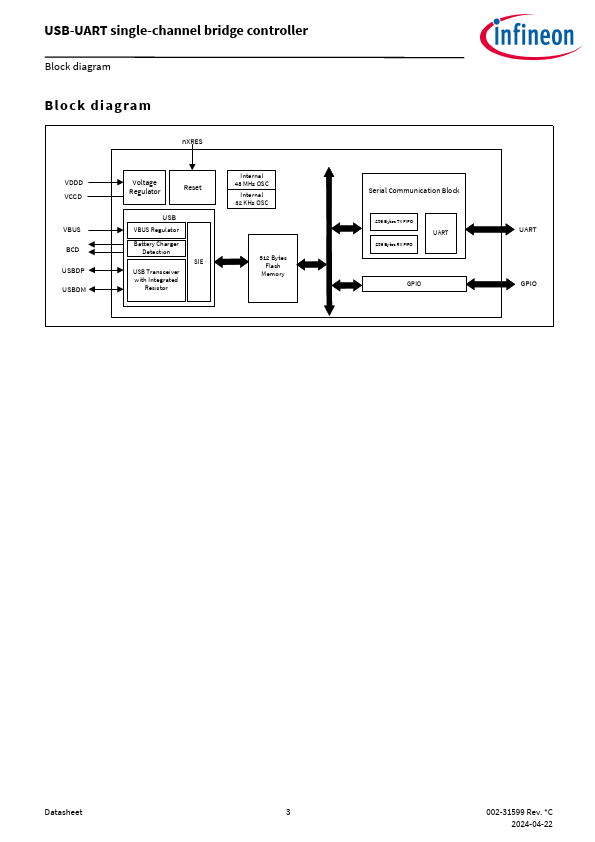

For a complete list of related resources, click here. C 2024-04-22 USB-UART single-channel bridge controller Block diagram Block diagram nXRES VDDD VCCD VBUS BCD USBDP USBDM Voltage

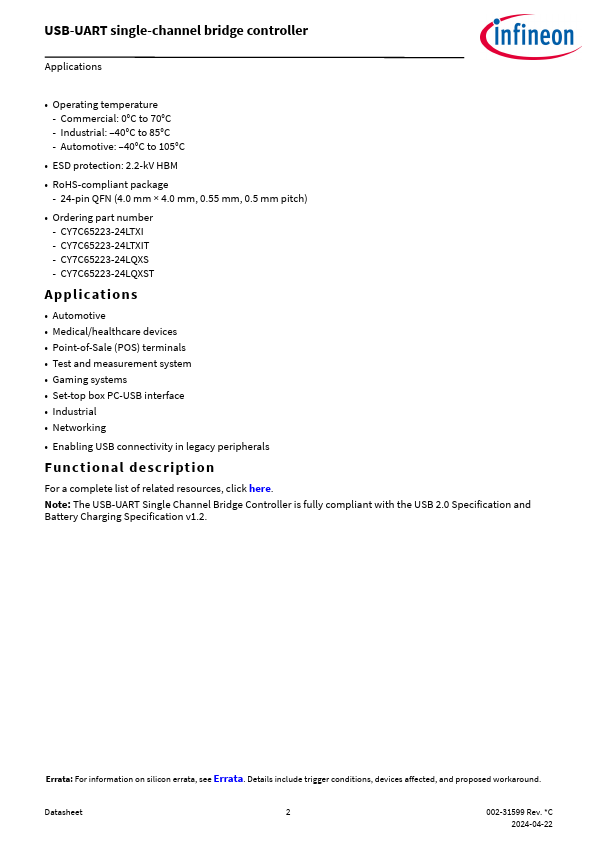

Features

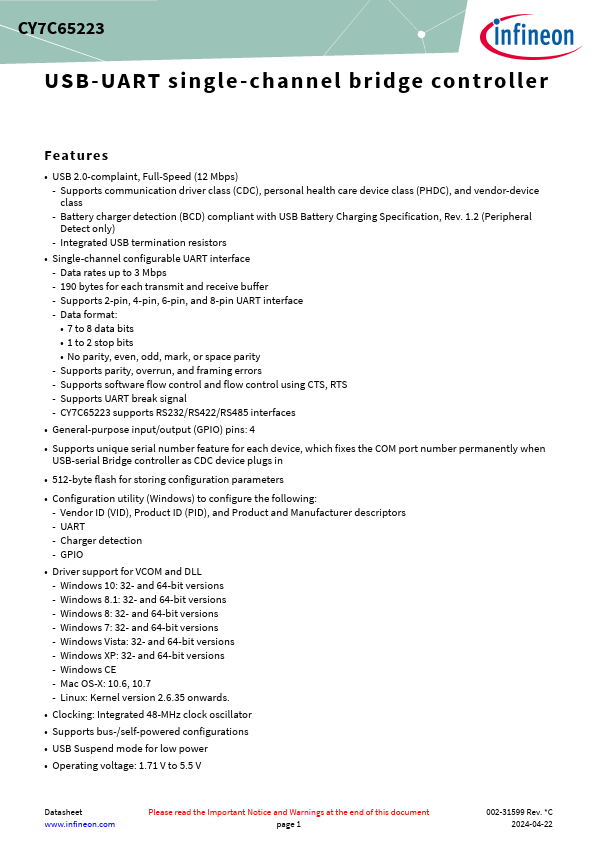

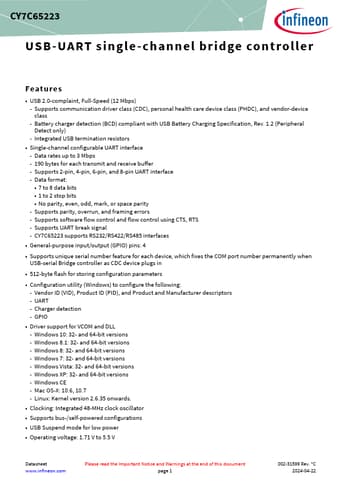

USB 2.0-complaint, Full-Speed (12 Mbps) - Supports communication driver class (CDC), personal health care device class (PHDC), and vendor-device class - Battery charger detection (BCD) compliant with USB Battery Charging Specification, Rev. 1.2 (Peripheral Detect only) - Integrated USB termination resistors.
Single-channel configurable UART interface - Data rates up to 3 Mbps - 190 bytes for each transmit and receive buffer - Supports 2-pin, 4-pin, 6-pin, and 8-pin UART interf.
