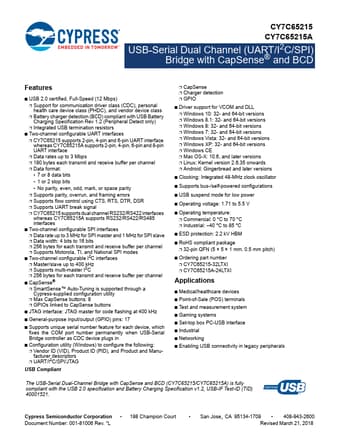

CY7C65215A, CY7C65215 - USB-Serial Dual-Channel Bridge

Cypress Semiconductor

Datasheet Details

Part number: CY7C65215A, CY7C65215
Manufacturer: Cypress Semiconductor
File Size: 590.49 KB
Datasheet: CY7C65215-CypressSemiconductor.pdf
Description: USB-Serial Dual-Channel Bridge
Note: This datasheet PDF includes multiple part numbers: CY7C65215A, CY7C65215.
Please refer to the document for exact specifications by model.

USB 2.0 certified, Full-Speed (12 Mbps).
Support for communication driver class (CDC), personal health care device class (PHDC), and vendor device class.
Battery charger detection (BCD) compliant with USB Battery Charging Specification Rev 1.2 (Peripheral Detect only).
Integrated USB termination resistors.
Two-channel configurable UART interfaces.
CY7C65215 supports 2-pin, 4-pin and 6-pin UART interface whereas CY7C65215A supports 2-pin, 4-pin, 6-pin and 8-pin UART.
