CY7C65213A, CY7C65213 - USB-UART LP Bridge Controller

Name: CY7C65213A
SKU: CY7C65213A-1084307

Cypress Semiconductor

The CY7C65213A by Cypress Semiconductor is a USB-UART LP Bridge Controller. Below is the official datasheet preview.

Datasheet Details

Part number	CY7C65213A, CY7C65213
Manufacturer	Cypress Semiconductor
File Size	431.61 KB
Description	USB-UART LP Bridge Controller
Datasheet	CY7C65213-CypressSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: CY7C65213A, CY7C65213. Please refer to the document for exact specifications by model.

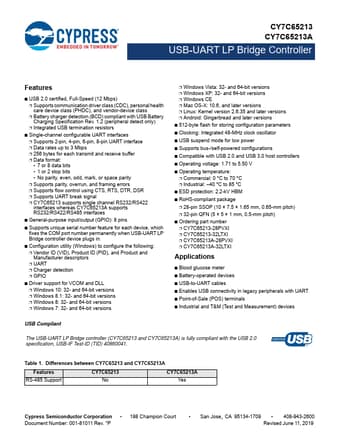

Additional preview pages of the CY7C65213A datasheet.

USB 2.0 certified, Full-Speed (12 Mbps).
Supports communication driver class (CDC), personal health care device class (PHDC), and vendor-device class.
Battery charger detection (BCD) compliant with USB Battery Charging Specification Rev. 1.2 (peripheral detect only).
Integrated USB termination resistors.
Single-channel configurable UART interfaces.
Supports 2-pin, 4-pin, 6-pin, 8-pin UART interface.
Data rates up to 3 Mbps.
256 bytes for each transmit and.
