CYV15G0100EQ

Prosumer Video Cable Equalizer

Cypress Semiconductor

CYV15G0100EQ Features

* Pb-free and RoHS compliant Uses Cypress CLEANLink™ technology Pin compatible to existing equalizer devices Multi rate adaptive equalization Operates from 143 to 1485 Mbps serial data rate SMPTE 292M, SMPTE 344M, and SMPTE 259M compliant Supports DVB-ASI at

CYV15G0100EQ General Description

The CYV15G0100EQ is a multi rate adaptive equalizer designed to equalize and restore signals received over 75Ω coaxial cable. The equalizer meets SMPTE 292M, SMPTE 344M, and SMPTE 259M data rates. The CYV15G0100EQ is optimized to equalize up to 175m of Belden 1694A coaxial cable at 270 Mbps and up t.

CYV15G0100EQ Datasheet (284.30 KB)

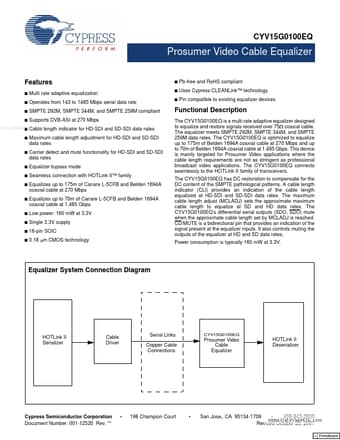

CYV15G0100EQ Datasheet Preview — Preview of CYV15G0100EQ PDF

Datasheet Details

Part number:

CYV15G0100EQ

Manufacturer:

Cypress Semiconductor

File Size:

284.30 KB

Description:

Prosumer video cable equalizer.
