CYV15G0102EQ

Multi-Rate Video Cable Equalizer

Cypress Semiconductor

CYV15G0102EQ Features

* Multi-Rate Adaptive Equalization

* SMPTE 292M, SMPTE 344M, and SMPTE 259M Compliant

* Supports DVB-ASI at 270 Mbps

* Cable Length Indicator for HD-SDI and SD-SDI data rates www.DataSheet4U.com

* Maximum Cable Length Adjustment for HD-SDI and SD-SDI data rate

CYV15G0102EQ General Description

The CYV15G0102EQ is a multi-rate adaptive equalizer designed to equalize and restore signals received over 75Ω coaxial cable. The equalizer is designed to meet SMPTE 292M, SMPTE 344M, and SMPTE 259M data rates. The CYV15G0102EQ is optimized to equalize up to 400m of Belden 1694A coaxial cable at 270.

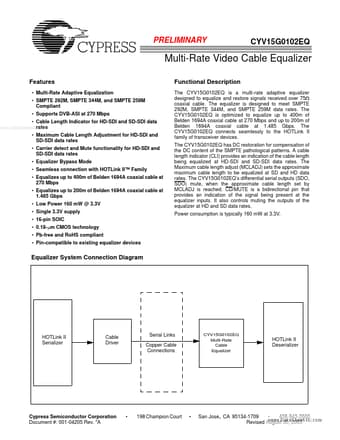

CYV15G0102EQ Datasheet (125.40 KB)

CYV15G0102EQ Datasheet Preview — Preview of CYV15G0102EQ PDF

Datasheet Details

Part number:

CYV15G0102EQ

Manufacturer:

Cypress Semiconductor

File Size:

125.40 KB

Description:

Multi-rate video cable equalizer.
