CYV15G0101EQ Datasheet, Equalizer, Cypress Semiconductor

CYV15G0101EQ Features

  • Equalizer Multi-Rate Adaptive Equalization SMPTE 292M, SMPTE 344M, and SMPTE 259M Compliant Supports DVB-ASI at 270 Mbps Cable Length Indicator for HD-SDI and SD-SDI data rates Maximum Cable Leng

PDF File Details

Part number:

CYV15G0101EQ

Manufacturer:

Cypress Semiconductor

File Size:

259.98kb

Download:

📄 Datasheet

Description:

Multi-rate video cable equalizer. The CYV15G0101EQ is a multi-rate adaptive equalizer designed to equalize and restore signals received over 75Ω coaxial cable. The equ

Datasheet Preview: CYV15G0101EQ 📥 Download PDF (259.98kb)

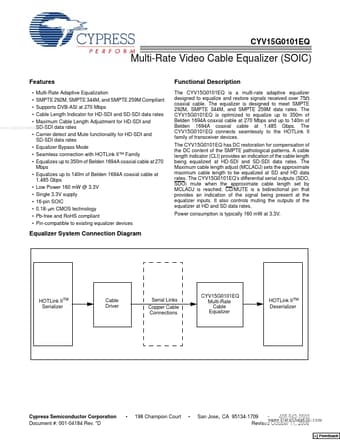

Page 2 of CYV15G0101EQ Page 3 of CYV15G0101EQ

CYV15G0101EQ Application

  • Applications that do not require muting of the outputs. AGC A capacitor of 1 µF should be placed between the AGC± pins of the CYV15G0101EQ equalize
