CYV15G0101DXB - Single-channel HOTLink Transceiver

Cypress Semiconductor

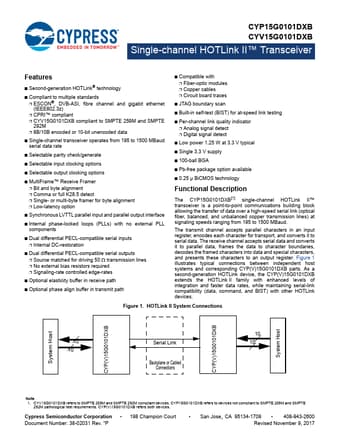

CYV15G0101DXB Datasheet Preview — Preview of CYV15G0101DXB PDF

Datasheet Details

Part number	CYV15G0101DXB
Manufacturer	Cypress Semiconductor
File Size	0.98 MB
Description	Single-channel HOTLink Transceiver
Datasheet	CYV15G0101DXB_CypressSemiconductor.pdf

CYV15G0101DXB Product details

Description

The CYP15G0101DXB[1] single-channel HOTLink II™ transceiver is a point-to-point communications building block allowing the transfer of data over a high-speed serial link (optical fiber, balanced, and unbalanced copper transmission lines) at signaling speeds ranging from 195 to 1500 MBaud.

Features

Second-generation HOTLink® technology.
Compliant to multiple standards.
ESCON®, DVB-ASI, fibre channel and gigabit ethernet (IEEE802.3z).
CPRI™ compliant.
CYV15G0101DXB compliant to SMPTE 259M and SMPTE 292M.
8B/10B encoded or 10-bit unencoded data.
Single-channel transceiver operates from 195 to 1500 MBaud serial data rate.
Selectable parity check/generate.
Selectable input clocking options.
Selectable output clocking options.
MultiFrame™.
