PALCE20V8

Flash Erasable/ Reprogrammable CMOS PAL Device

PALCE20V8 Features

* Active pull-up on data input pins

* Low power version (20V8L)

* 55 mA max. commercial (15, 25 ns)

* 65 mA max. military/industrial (15, 25 ns)

* Standard version has low power

* 90 mA max. commercial (15, 25 ns)

* 115 mA max. commercial (10 n

PALCE20V8 General Description

The Cypress PALCE20V8 is a CMOS Flash Erasable second-generation programmable array logic device. It is implemented with the familiar sum-of-product (AND-OR) logic structure and the programmable macrocell. The PALCE20V8 is executed in a 24-pin 300-mil molded DIP, a 300-mil cerdip, a 28-lead square c.

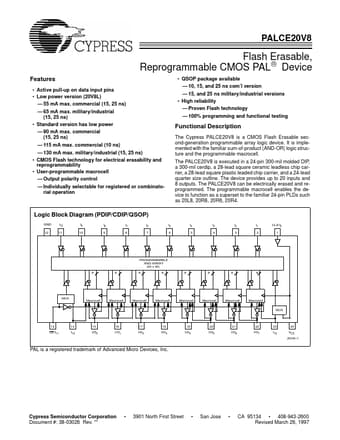

PALCE20V8 Datasheet (352.29 KB)

Preview of PALCE20V8 PDF

Datasheet Details

Part number:

PALCE20V8

Manufacturer:

Cypress Semiconductor

File Size:

352.29 KB

Description:

Flash erasable/ reprogrammable cmos pal device.
