PSoC4000

Programmable System-on-Chip

PSoC4000 Features

* 32-bit MCU Subsystem

* 16-MHz ARM Cortex-M0 CPU

* Up to 16 KB of flash with Read Accelerator

* Up to 2 KB of SRAM Programmable Analog

* Two current DACs (IDACs) for general-purpose or capacitive sensing applications

* One low-power comparator with internal reference Low Power 1.7

PSoC4000 General Description

PSoC® 4 is a scalable and reconfigurable platform architecture for a family of programmable embedded system controllers with an ARM® Cortex™-M0 CPU. It combines programmable and reconfigurable analog and digital blocks with flexible automatic routing. The PSoC 4000 product family is the smallest mem.

PSoC4000 Datasheet (973.58 KB)

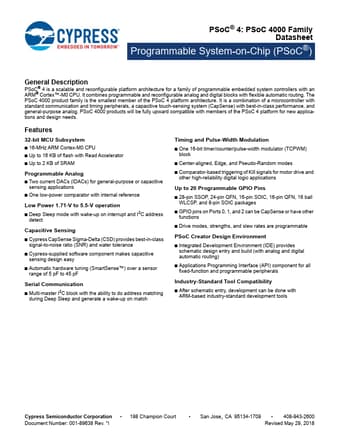

Preview of PSoC4000 PDF

Datasheet Details

Part number:

PSoC4000

Manufacturer:

Cypress Semiconductor

File Size:

973.58 KB

Description:

Programmable system-on-chip.
