PSoC4100M

Programmable System-on-Chip

PSoC4100M Features

* 32-bit MCU Subsystem

* Automotive Electronics Council (AEC) AEC-Q100 qualified

* 24-MHz Arm Cortex-M0 CPU with single-cycle multiply

* Up to 128 kB of flash with Read Accelerator

* Up to 16 kB of SRAM

* DMA engine Programmable Analog

* Four opamps that operate in Deep Sleep

PSoC4100M General Description

PSoC® 4 is a scalable and reconfigurable platform architecture for a family of programmable embedded system controllers with an Arm® Cortex®-M0 CPU, while being AEC-Q100 compliant. It combines programmable and reconfigurable analog and digital blocks with flexible automatic routing. The PSoC 4100M .

PSoC4100M Datasheet (761.02 KB)

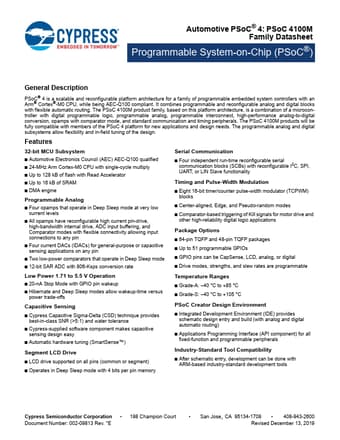

Preview of PSoC4100M PDF

Datasheet Details

Part number:

PSoC4100M

Manufacturer:

Cypress Semiconductor

File Size:

761.02 KB

Description:

Programmable system-on-chip.
Automotive PSoC® 4: PSoC 4100M Family Datasheet Programmable System-on-Chip (PSoC®) Automotive PSoC® 4: PSoC 4100M Family Datasheet Programmable Syst.
