PSoC4100

Programmable System-on-Chip

PSoC4100 Features

* 32-bit MCU Sub-system

* 24-MHz Arm Cortex-M0 CPU with single-cycle multiply

* Up to 32 kB of flash with Read Accelerator

* Up to 4 kB of SRAM Programmable Analog

* Two opamps with reconfigurable high-drive external and high-bandwidth internal drive and Comparator modes and ADC input

PSoC4100 General Description

PSoC® 4 is a scalable and reconfigurable platform architecture for a family of mixed-signal programmable embedded system controllers with an Arm® Cortex™-M0 CPU. It combinesArm programmable and reconfigurable analog and digital blocks with flexible automatic routing. The PSoC 4100 product family, ba.

PSoC4100 Datasheet (965.93 KB)

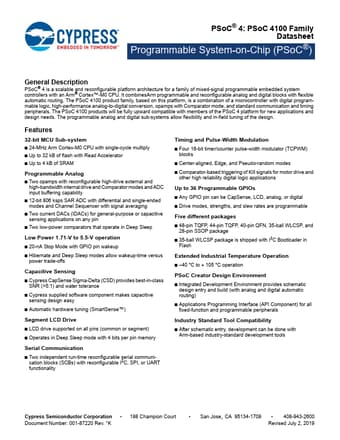

Preview of PSoC4100 PDF

Datasheet Details

Part number:

PSoC4100

Manufacturer:

Cypress

File Size:

965.93 KB

Description:

Programmable system-on-chip.
