PSoC4000S

Programmable System-on-Chip

PSoC4000S Features

* 32-bit MCU Subsystem

* 48-MHz Arm Cortex-M0+ CPU with single-cycle multiply

* Up to 32 KB of flash with Read Accelerator

* Up to 4 KB of SRAM Programmable Analog

* Single-slope 10-bit ADC function provided by Capacitance sensing block

* Two current DACs (IDACs) for general-purpos

PSoC4000S General Description

PSoC® 4 is a scalable and reconfigurable platform architecture for a family of programmable embedded system controllers with an Arm® Cortex™-M0+ CPU. It combines programmable and reconfigurable analog and digital blocks with flexible automatic routing. The PSoC 4000S product family is a member of th.

PSoC4000S Datasheet (826.96 KB)

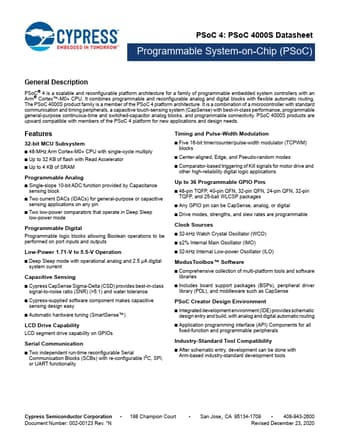

Preview of PSoC4000S PDF

Datasheet Details

Part number:

PSoC4000S

Manufacturer:

Cypress Semiconductor

File Size:

826.96 KB

Description:

Programmable system-on-chip.
