STK15C88 - 256-Kbit (32 K x 8) PowerStore nvSRAM

Datasheet Summary

Description

The Cypress STK15C88 is a 256Kb fast static RAM with a nonvolatile element in each memory cell.

The embedded nonvolatile elements incorporate QuantumTrap™ technology producing the world’s most reliable nonvolatile memory.

Features

  • 25 ns and 45 ns Access Times.
  • Pin compatible with Industry Standard SRAMs.
  • Automatic Nonvolatile STORE on power loss.
  • Nonvolatile STORE under Software Control.
  • Automatic RECALL to SRAM on Power Up.
  • Unlimited Read/Write Endurance.
  • Unlimited RECALL Cycles.
  • 1,000,000 STORE Cycles.
  • 100 year Data Retention.
  • Single 5 V + 10% Power Supply.
  • Commercial and Industrial Temperatures.
  • 28-pin (300 mil and 330 mil) SOIC packages.
  • RoHS Compliance.

📥 Download Datasheet

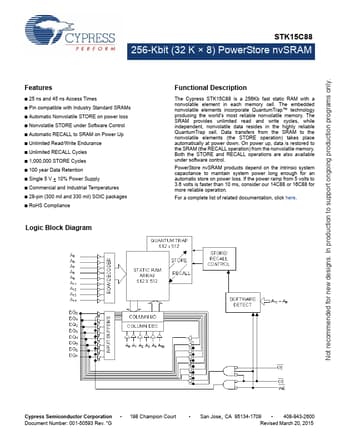

Datasheet preview – STK15C88

Datasheet Details

Part number STK15C88
Manufacturer Cypress Semiconductor
File Size 0.96 MB
Description 256-Kbit (32 K x 8) PowerStore nvSRAM
Datasheet download datasheet STK15C88 Datasheet
Additional preview pages of the STK15C88 datasheet.

📁 Similar Datasheet

  • STK15C88 - 32Kx8 PowerStore nvSRAM (Simtek)
  • STK15C68 - CMOS Nonvolatile Static RAM (Simtek)
  • STK103 - N-Channel MOSFET (SamHop Microelectronics)
  • STK1030 - AF Power Amplifier Output Stage (ETC)
  • STK1030 - (STKxxxx) Output Stage of AF Power Amp (ETC)
  • STK1035 - (STKxxxx) Output Stage of AF Power Amp (ETC)
  • STK1039 - (STKxxxx) Output Stage of AF Power Amp (ETC)
  • STK1040 - (STKxxxx) Output Stage of AF Power Amp (ETC)
  • STK1045 - (STKxxxx) Output Stage of AF Power Amp (ETC)
  • STK1049 - (STKxxxx) Output Stage of AF Power Amp (ETC)
Other Datasheets by Cypress Semiconductor
  • STK11C68 - 64-Kbit (8 K x 8) SoftStore nvSRAM
  • STK11C88 - 256 Kbit (32 K x 8) SoftStore nvSRAM
  • STK12C68 - 64 Kbit (8 K x 8) AutoStore nvSRAM
  • STK14C88 - 32 K x 8 AutoStore nvSRAM

Full PDF Text Transcription

Click to expand full text
Not recommended for new designs. In production to support ongoing production programs only. STK15C88 256-Kbit (32 K × 8) PowerStore nvSRAM 256-Kbit (32 K × 8) PowerStore nvSRAM Features ■ 25 ns and 45 ns Access Times ■ Pin compatible with Industry Standard SRAMs ■ Automatic Nonvolatile STORE on power loss ■ Nonvolatile STORE under Software Control ■ Automatic RECALL to SRAM on Power Up ■ Unlimited Read/Write Endurance ■ Unlimited RECALL Cycles ■ 1,000,000 STORE Cycles ■ 100 year Data Retention ■ Single 5 V + 10% Power Supply ■ Commercial and Industrial Temperatures ■ 28-pin (300 mil and 330 mil) SOIC packages ■ RoHS Compliance Logic Block Diagram Functional Description The Cypress STK15C88 is a 256Kb fast static RAM with a nonvolatile element in each memory cell.
