STK11C68 - 64-Kbit (8 K x 8) SoftStore nvSRAM

Datasheet Summary

Description

The Cypress STK11C68 is a 64Kb fast static RAM with a nonvolatile element in each memory cell.

The embedded nonvolatile elements incorporate QuantumTrap technology producing the world’s most reliable nonvolatile memory.

Features

  • 25 ns, 35 ns, and 45 ns access times.
  • Pin compatible with industry standard SRAMs.
  • Software initiated nonvolatile STORE.
  • Unlimited Read and Write endurance.
  • Automatic RECALL to SRAM on power up.
  • Unlimited RECALL cycles.
  • 1,000,000 STORE cycles.
  • 100 year data retention.
  • Single 5 V+10% operation.
  • Commercial and industrial temperature.
  • 28-pin (330 mil) SOIC package.
  • 28-pin (300 mil) CDIP and 28-pad (350 mil) LCC packages.
  • RoHS complia.

📥 Download Datasheet

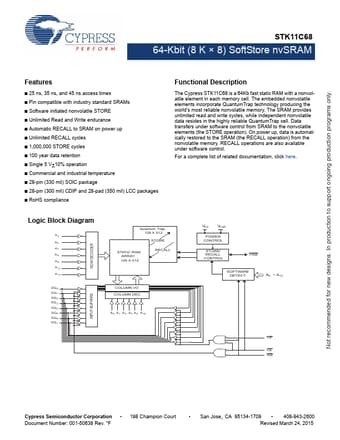

Datasheet preview – STK11C68

Datasheet Details

Part number STK11C68
Manufacturer Cypress Semiconductor
File Size 1.37 MB
Description 64-Kbit (8 K x 8) SoftStore nvSRAM
Datasheet download datasheet STK11C68 Datasheet
Additional preview pages of the STK11C68 datasheet.

📁 Similar Datasheet

  • STK11C68 - 8K x 8 nvSRAM QuantumTrap CMOS Nonvolatile Static RAM (Simtek)
  • STK11C68-M - CMOS NV SRAM (Simtek)
  • STK11C48 - 8K x 8 nvSRAM QuantumTrap CMOS Nonvolatile Static RAM (Simtek)
  • STK11C88 - 32Kx8 SoftStore nvSRAM (Simtek)
  • STK11C88-3 - 32K X 8 NVSRAM 3.3 V QUANTUM TRAP CMOS NONVOLATILE STATIC RAM (Simtek)
  • STK1160 - USB2.0 TV Tuner/Video Capture Controller (SYNTEK)
  • STK103 - N-Channel MOSFET (SamHop Microelectronics)
  • STK1030 - AF Power Amplifier Output Stage (ETC)
  • STK1030 - (STKxxxx) Output Stage of AF Power Amp (ETC)
  • STK1035 - (STKxxxx) Output Stage of AF Power Amp (ETC)
Other Datasheets by Cypress Semiconductor
  • STK11C88 - 256 Kbit (32 K x 8) SoftStore nvSRAM
  • STK12C68 - 64 Kbit (8 K x 8) AutoStore nvSRAM
  • STK14C88 - 32 K x 8 AutoStore nvSRAM
  • STK15C88 - 256-Kbit (32 K x 8) PowerStore nvSRAM

Full PDF Text Transcription

Click to expand full text
Not recommended for new designs. In production to support ongoing production programs only. STK11C68 64-Kbit (8 K × 8) SoftStore nvSRAM Features ■ 25 ns, 35 ns, and 45 ns access times ■ Pin compatible with industry standard SRAMs ■ Software initiated nonvolatile STORE ■ Unlimited Read and Write endurance ■ Automatic RECALL to SRAM on power up ■ Unlimited RECALL cycles ■ 1,000,000 STORE cycles ■ 100 year data retention ■ Single 5 V+10% operation ■ Commercial and industrial temperature ■ 28-pin (330 mil) SOIC package ■ 28-pin (300 mil) CDIP and 28-pad (350 mil) LCC packages ■ RoHS compliance Functional Description The Cypress STK11C68 is a 64Kb fast static RAM with a nonvolatile element in each memory cell.
