STK11C88 - 256 Kbit (32 K x 8) SoftStore nvSRAM

Datasheet Summary

Description

The Cypress STK11C88 is a 256 Kb fast static RAM with a nonvolatile element in each memory cell.

The embedded nonvolatile elements incorporate QuantumTrap technology producing the world’s most reliable nonvolatile memory.

Features

  • 25 ns and 45 ns Access Times.
  • Pin Compatible with Industry Standard SRAMs.
  • Software initiated STORE and RECALL.
  • Automatic RECALL to SRAM on Power Up.
  • Unlimited Read and Write endurance.
  • Unlimited RECALL Cycles.
  • 1,000,000 STORE Cycles.
  • 100 year Data Retention.
  • Single 5 V+10% Power Supply.
  • Commercial and Industrial Temperatures.
  • 28-pin (300 mil and 330 mil) SOIC packages.
  • RoHS compliance Functional.

📥 Download Datasheet

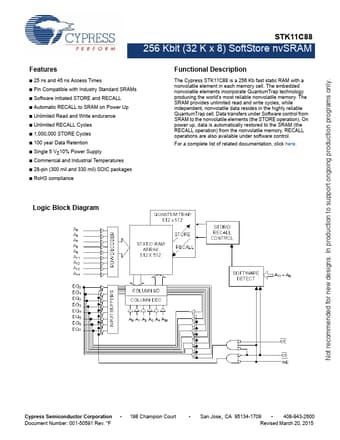

Datasheet preview – STK11C88

Datasheet Details

Part number STK11C88
Manufacturer Cypress Semiconductor
File Size 1.02 MB
Description 256 Kbit (32 K x 8) SoftStore nvSRAM
Datasheet download datasheet STK11C88 Datasheet
Additional preview pages of the STK11C88 datasheet.

📁 Similar Datasheet

  • STK11C88 - 32Kx8 SoftStore nvSRAM (Simtek)
  • STK11C88-3 - 32K X 8 NVSRAM 3.3 V QUANTUM TRAP CMOS NONVOLATILE STATIC RAM (Simtek)
  • STK11C48 - 8K x 8 nvSRAM QuantumTrap CMOS Nonvolatile Static RAM (Simtek)
  • STK11C68 - 8K x 8 nvSRAM QuantumTrap CMOS Nonvolatile Static RAM (Simtek)
  • STK11C68-M - CMOS NV SRAM (Simtek)
  • STK1160 - USB2.0 TV Tuner/Video Capture Controller (SYNTEK)
  • STK103 - N-Channel MOSFET (SamHop Microelectronics)
  • STK1030 - AF Power Amplifier Output Stage (ETC)
  • STK1030 - (STKxxxx) Output Stage of AF Power Amp (ETC)
  • STK1035 - (STKxxxx) Output Stage of AF Power Amp (ETC)
Other Datasheets by Cypress Semiconductor
  • STK11C68 - 64-Kbit (8 K x 8) SoftStore nvSRAM
  • STK12C68 - 64 Kbit (8 K x 8) AutoStore nvSRAM
  • STK14C88 - 32 K x 8 AutoStore nvSRAM
  • STK15C88 - 256-Kbit (32 K x 8) PowerStore nvSRAM

Full PDF Text Transcription

Click to expand full text
Not recommended for new designs. In production to support ongoing production programs only. STK11C88 256 Kbit (32 K x 8) SoftStore nvSRAM Features ■ 25 ns and 45 ns Access Times ■ Pin Compatible with Industry Standard SRAMs ■ Software initiated STORE and RECALL ■ Automatic RECALL to SRAM on Power Up ■ Unlimited Read and Write endurance ■ Unlimited RECALL Cycles ■ 1,000,000 STORE Cycles ■ 100 year Data Retention ■ Single 5 V+10% Power Supply ■ Commercial and Industrial Temperatures ■ 28-pin (300 mil and 330 mil) SOIC packages ■ RoHS compliance Functional Description The Cypress STK11C88 is a 256 Kb fast static RAM with a nonvolatile element in each memory cell. The embedded nonvolatile elements incorporate QuantumTrap technology producing the world’s most reliable nonvolatile memory.
