MB39C503, MB39C502 High Efficiency Step Down DC/DC Controller Datasheet

MB39C503 Description

MB39C502/503/504 High Efficiency Step Down DC/DC Controller Datasheet .
MB39C502 is a single output step down DC/DC controller using external FETs.

MB39C503 Features

* High Efficiency with Enhanced LPM Operation
* Automatic Transition for PFM/PWM
* Enhanced LPM Operation Transferred by SLP_N Assertion
* Over Current Alerting
* Reference Voltage Accuracy: ±1%
* Output Voltage Range : 0.7V to 2.0V (MB39C502) : 2.4V to 3.5V (MB39C503)

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MB39C503, MB39C502. Please refer to the document for exact specifications by model.

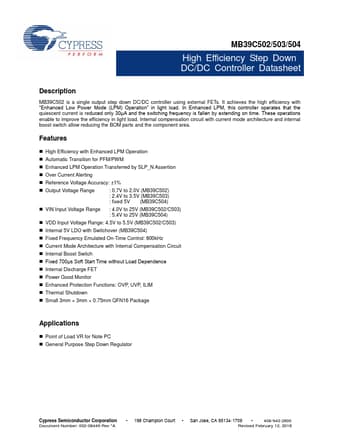

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MB39C503, MB39C502
Manufacturer
Cypress
File Size
974.06 KB
Datasheet
MB39C502-Cypress.pdf
Description
High Efficiency Step Down DC/DC Controller Datasheet
Note
This datasheet PDF includes multiple part numbers: MB39C503, MB39C502.
Please refer to the document for exact specifications by model.
