MB39C504 High Efficiency Step Down DC/DC Controller Datasheet

MB39C502 is a single output step down DC/DC controller using external FETs. It achieves the high efficiency with “Enhanced Low Power Mode (LPM) Operation” in light load. In Enhanced LPM, this controller operates that the quiescent current is reduced only 30μA and the switching frequency is fallen by.

MB39C504 Features

* High Efficiency with Enhanced LPM Operation

* Automatic Transition for PFM/PWM

* Enhanced LPM Operation Transferred by SLP_N Assertion

* Over Current Alerting

* Reference Voltage Accuracy: ±1%

* Output Voltage Range : 0.7V to 2.0V (MB39C502) : 2.4V to 3.5V (MB39C503)

MB39C504 Datasheet (974.06 KB)

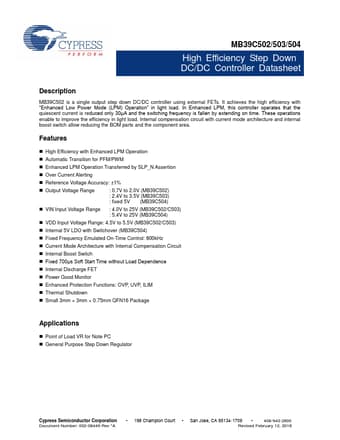

MB39C504 Datasheet Preview — Preview of MB39C504 PDF

Datasheet Details

Part number:

MB39C504

Manufacturer:

Cypress

File Size:

974.06 KB

Description:

High efficiency step down dc/dc controller datasheet.
