S25FL256S, S25FL128S Datasheet - Cypress

S25FL256S - 3.0V SPI Flash Memory

4 1.2 Migration Notes 4 1.3 Glossary 6 1.4 Other Resources 7 Hardware Interface 2.

Signal Descriptions 8 2.1 Input/Output Summary 8 2.2 Address and Data Configuration 9 2.3 RESET# 9 2.4 Serial Clock (SCK) 9 2.5 Chip Select (CS#) 9 2.6 Serial Input (SI) / IO0 9 2.7 Serial Output (SO) / IO1 10 2

S25FL256S Features

* CMOS 3.0 Volt Core with Versatile I/O

* SPI with Multi-I/O

* SPI Clock polarity and phase modes 0 and 3

* DDR option

* Extended Addressing: 24- or 32-bit address options

* Serial Command set and footprint compatible with S25FL-A, S25FL-K, and S25FL-P SPI families

* Mult

S25FL128S-Cypress.pdf

This datasheet PDF includes multiple part numbers: S25FL256S, S25FL128S. Please refer to the document for exact specifications by model.

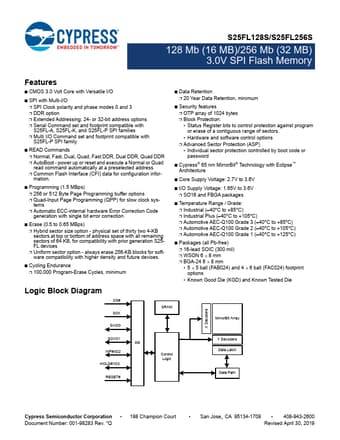

S25FL256S Datasheet Preview Page 2 S25FL256S Datasheet Preview Page 3

Datasheet Details

Part number:

S25FL256S, S25FL128S

Manufacturer:

Cypress

File Size:

4.79 MB

Description:

3.0v spi flash memory.

Note:

This datasheet PDF includes multiple part numbers: S25FL256S, S25FL128S.
Please refer to the document for exact specifications by model.
