BTC5179S3, NPN Transistor

CYStech Electronics Corp.High Frequency NPN Epitaxial Planar Transistor Spec.No.: C213S3 www.DataSheet4U.com Issued Date : 2003.04.25 Revised Date.
The BTC5179S3 is a NPN Epitaxial Silicon Transistor designed for low noise microwave amplification application.

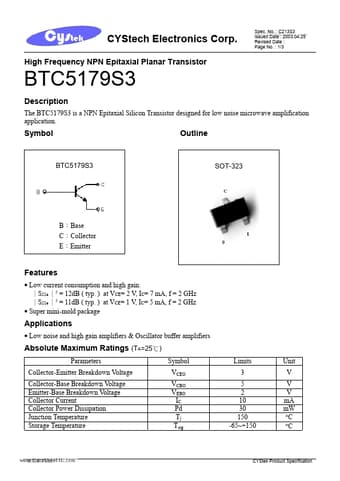

datasheet Preview Page 1 from Datasheet4u.com

BTC5179S3_CystechElectonicsCorp.pdf

BTC5179S3 Datasheet Preview — Preview of BTC5179S3 PDF

Datasheet Details

Part number:

BTC5179S3

Manufacturer:

Cystech Electonics Corp

File Size:

177.54 KB

Description:

NPN Transistor

Features

* Low current consumption and high gain: ∣S21e∣² = 12dB ( typ. ) at VCE= 2 V, IC= 7 mA, f = 2 GHz ∣S21e∣² = 11dB ( typ. ) at VCE= 1 V, IC= 5 mA, f = 2 GHz

Applications

* Low noise and high gain amplifiers & Oscillator buffer amplifiers Absolute Maximum Ratings (TA=25℃) Parameters Collector-Emitter Breakdown Voltage Collector-Base Breakdown Voltage Emitter-Base Breakdown Voltage Collector Current Collector Power Dissipation Junction Temperature Storage Tem
