BAT54CN3 - Small Signal Schottky diodes

BAT54CN3 Description

www.datasheet4u.com CYStech Electronics Corp.Small Signal Schottky (double) diodes Spec.No.: C302N3-H Issued Date : 2003.04.14 Revised Date : Pag.
Planar silicon Schottky barrier diodes encapsulated in a SOT-23 small plastic SMD package.

BAT54CN3 Features

* Very small conduction losses
* Low forward voltage drop

BAT54CN3 Applications

* Ultra high-speed switching
* Voltage clamping
* Protection circuits

📥 Download Datasheet

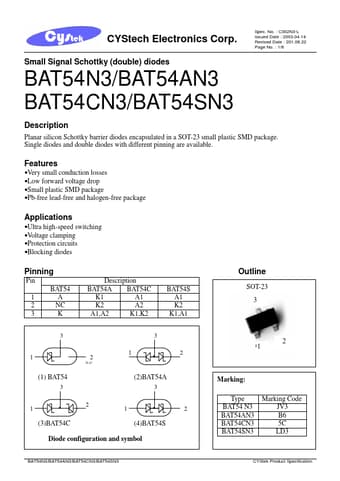

Preview of BAT54CN3 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BAT54CN3
Manufacturer
Cystech Electonics
File Size
339.03 KB
Datasheet
BAT54CN3_CystechElectonics.pdf
Description
Small Signal Schottky diodes
