ADS-942 Datasheet - DATEL

ADS-942 - 2MHz Sampling A/D Converters

ADS-942 14-Bit, 2MHz Sampling A/D Converters PRODUCT OVERVIEW DATEL's ADS-942 is a functionally complete, 14-bit, 2MHz, sampling A/D converter.

Its standard, 32-pin, triple-wide ceramic DIP contains a fastsettling sample/hold amplifier, a 14-bit subranging (two-pass) A/D converter, a precision reference, three-state output register and all the timing and control logic necessary to operate from a single start convert pulse.

The ADS-942 is optimized for wideband frequency-domain applications and

ADS-942 Features

* 14-bit resolution

* 2MHz minimum throughput

* Functionally complete

* Internal reference and sample/hold

* -85dB total harmonic distortion

* 78dB signal-to-noise ratio

* Full Nyquist-rat

ADS-942-DATEL.pdf

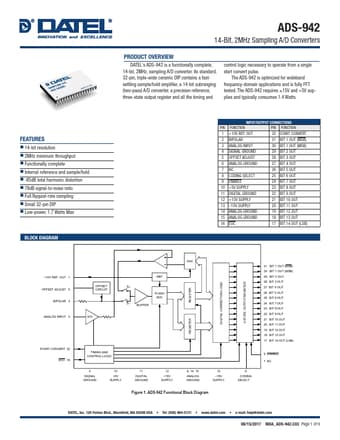

Preview of ADS-942 PDF
