ADS-945, 10MHz Sampling A/D Converters

datasheet Preview Page 1 from Datasheet4u.com

ADS-945-Datel.pdf

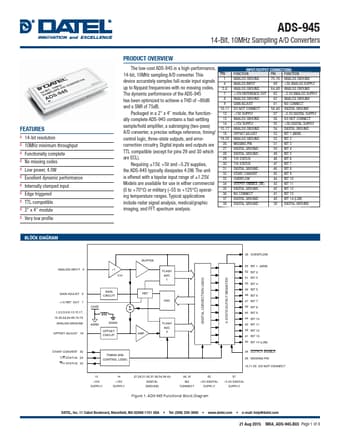

ADS-945 Datasheet Preview — Preview of ADS-945 PDF

Datasheet Details

Part number:

ADS-945

Manufacturer:

Datel

File Size:

247.98 KB

Description:

10MHz Sampling A/D Converters

Features

* 14-bit resolution 10MHz minimum throughput Functionally complete No missing codes Low power, 4.0W Excellent dynamic performance Internally clamped input Edge triggered TTL compatible 2" x 4" module Very low profile ADS-945 14-Bit, 10MHz Sampling A/D Converters PRODUCT OVERVIEW The low-cost ADS-94

Applications

* include radar signal analysis, medical/graphic 35 DIGITAL GROUND 36 NO CONNECT 37 DIGITAL GROUND 38 DIGITAL GROUND 42 BIT 12 41 BIT 13 40 BIT 14 (LSB) 39 DIGITAL GROUND imaging, and FFT spectrum analysis. BLOCK DIAGRAM ANALOG INPUT 4 +1 T/H BUFFER FLASH ADC 1 GAIN ADJUST 9 +10 REF. OUT 7 1,
