ADS-944 5MHz Sampling A/D Converters

ADS-944 14-Bit, 5MHz Sampling A/D Converters PRODUCT OVERVIEW The low-cost ADS-944 is a high-performance, 14-bit, 5MHz sampling A/D converter. This device accurately samples fullscale input signals up to Nyquist frequencies with no missing codes. The dynamic performance of the ADS-944 has been optimized to achieve a THD of 77dB and a SNR of 76dB. Packaged in a small, 32-pin TDIP, the functionally complete ADS-944 contains a fast-settling sample-hold amplifier, a subranging (two-pass) A.

ADS-944 Features

* 14-bit resolution

* 5MHz minimum sampling rate

* No missing codes over full HI-REL temperature range

* Edge-triggered, no pipeline delay

* Low power, 2.95 Watts

* Small, 32-pin, ceramic TDIP package

* SMT package available

* Excellent

ADS-944MC.pdf

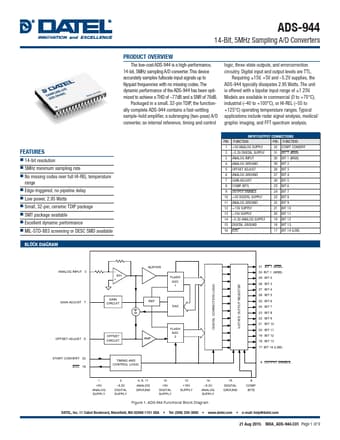

ADS-944 Datasheet Preview — This datasheet PDF includes multiple part numbers: ADS-944, ADS. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ADS-944, ADS

Manufacturer:

DATEL

File Size:

275.48 KB

Description:

5mhz sampling a/d converters.

Note:

This datasheet PDF includes multiple part numbers: ADS-944, ADS.
Please refer to the document for exact specifications by model.
