ADS-942A 2MHz Low-Power Sampling A/D Converters

ADS-942A 14-Bit, 2MHzLow-Power Sampling A/D Converters PRODUCT OVERVIEW DATEL's ADS-942A is a functionally complete, 14-bit, 2MHz, sampling A/D converter. Packaged in a 32-pin TDIP, the unit contains a fast-settling sample/hold amplifier, a 14-bit subranging (two-pass) A/D converter, a precision reference, three-state output register, and all the timing/con- trol logic necessary to operate from a single start convert pulse. The ADS-942AA is optimized for wideband frequency-domain applications .

ADS-942A Features

* 14-bit resolution

* 2MHz minimum throughput

* Low-power, 2.2 Watts

* Functionally complete

* Internal reference and S/H amplifier

* 78dB signal-to-noise ratio

* Full Nyquist-rate sampling

* Small 32-pin TDIP BLOCK DIAGRAM INPUT/OUTPU

ADS-942A Datasheet (176.94 KB)

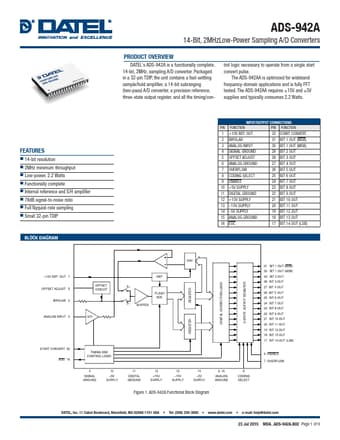

ADS-942A Datasheet Preview — Preview of ADS-942A PDF

Datasheet Details

Part number:

ADS-942A

Manufacturer:

DATEL

File Size:

176.94 KB

Description:

2mhz low-power sampling a/d converters.
