AP66200Q - 2A LOW IQ SYNCHRONOUS BUCK CONVERTER

DIODES

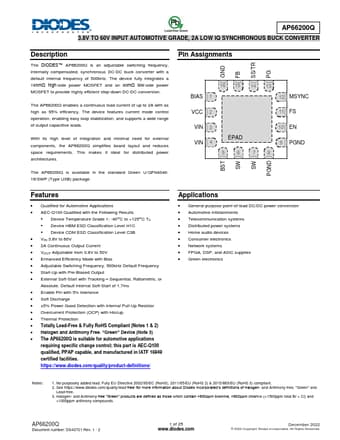

AP66200Q Datasheet Preview — Preview of AP66200Q PDF

Datasheet Details

Part number	AP66200Q
Manufacturer	DIODES ↗
File Size	2.25 MB
Description	2A LOW IQ SYNCHRONOUS BUCK CONVERTER
Datasheet	AP66200Q-DIODES.pdf

AP66200Q Product details

Description

The DIODES™ AP66200Q is an adjustable switching frequency, internally compensated, synchronous DC-DC buck converter with a default internal frequency of 500kHz.

Features

current mode control operation, enabling easy loop stabilization, and supports a wide range of output capacitive loads. With its high level of integration and minimal need for external components, the AP66200Q simplifies board layout and reduces space requirements. This makes it ideal for distributed power architectures. Pin Assignments 16 15 14 BIAS 1 VCC 2 VIN 3 VIN 4 EPAD 5 6 7 GND FB SS/TR PG 13 12 MSYNC 11 FS 10 EN 9 PGND 8 BST SW SW PGND The AP66200Q is available in the standa.
