AP66300Q - 3A LOW IQ SYNCHRONOUS BUCK CONVERTER

DIODES

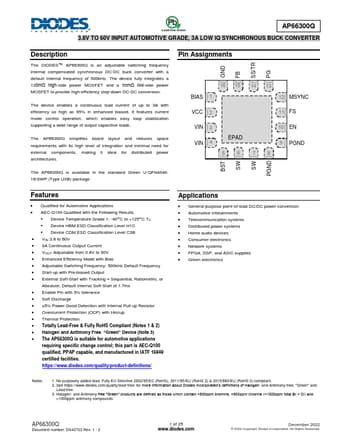

AP66300Q Datasheet Preview — Preview of AP66300Q PDF

Datasheet Details

Part number	AP66300Q
Manufacturer	DIODES ↗
File Size	2.27 MB
Description	3A LOW IQ SYNCHRONOUS BUCK CONVERTER
Datasheet	AP66300Q-DIODES.pdf

AP66300Q Product details

Description

The DIODES™ AP66300Q is an adjustable switching frequency internal compensated synchronous DC-DC buck converter with a default internal frequency of 500kHz.

Features

current mode control operation, which enables easy loop stabilization supporting a wide range of output capacitive loads. The AP66300Q simplifies board layout and reduces space requirements with its high level of integration and minimal need for external components, making it ideal for distributed power architectures. Pin Assignments 16 15 14 BIAS 1 VCC 2 VIN 3 VIN 4 EPAD 5 6 7 GND FB SS/TR PG 13 12 MSYNC 11 FS 10 EN 9 PGND 8 BST SW SW PGND The AP66300Q is available in the standard.
