AP66300 - 3A LOW IQ SYNCHRONOUS BUCK CONVERTER

DIODES

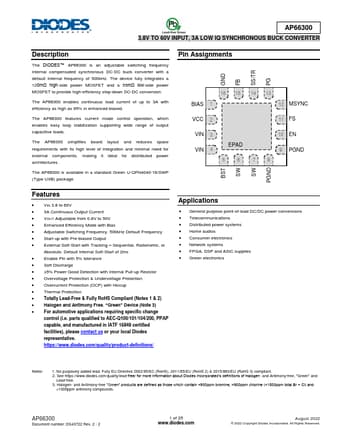

AP66300 Datasheet Preview — Preview of AP66300 PDF

Datasheet Details

Part number	AP66300
Manufacturer	DIODES ↗
File Size	2.31 MB
Description	3A LOW IQ SYNCHRONOUS BUCK CONVERTER
Datasheet	AP66300-DIODES.pdf

AP66300 Product details

Description

The DIODES™ AP66300 is an adjustable switching frequency internal compensated synchronous DC-DC buck converter with a default internal frequency of 500kHz.

Features

current mode control operation, which enables easy loop stabilization supporting wide range of output capacitive loads. The AP66300 simplifies board layout and reduces space requirements with its high level of integration and minimal need for external components, making it ideal for distributed power architectures. The AP66300 is available in a standard Green U-QFN4040-16/SWP (Type UXB) package. Pin Assignments 16 15 14 BIAS 1 VCC 2 VIN 3 VIN 4 EPAD 5 6 7 GND FB SS/TR PG 13 12 MSYNC 1.
