B260AF Datasheet PDF - DIODES 2.0A SCHOTTKY BARRIER RECTIFIER Specs

B260AF - 2.0A SCHOTTKY BARRIER RECTIFIER

Datasheet Summary

Description

and Applications The Schottky rectifier providing low VF and excellent reverse leakage stability at high temperatures, this device is ideal for use in general rectification applications such as: Boost Diode Blocking Diode Recirculating Diode

Features

Reduced Low Forward Voltage Drop (VF); Better Efficiency and Cooler Operation.
Reduced High-Temperature Reverse Leakage; Increased Reliability against Thermal Runaway Failure in High Temperature Operation.
Lead-Free Finish; RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3) Mechanical Data.
Case: SMAF.
Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0.
Moisture Sensitivity: Level.

Datasheet Details

Part number	B260AF
Manufacturer	DIODES
File Size	487.78 KB
Description	2.0A SCHOTTKY BARRIER RECTIFIER
Datasheet	B260AF Datasheet

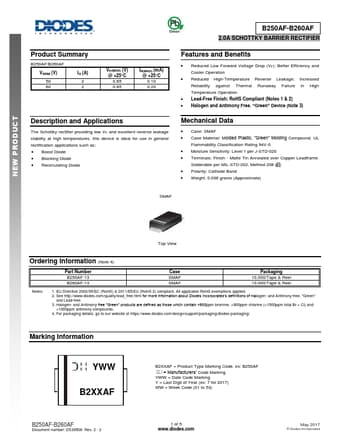

Additional preview pages of the B260AF datasheet.

📁 Similar Datasheet

B260A - 2.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (Diodes Incorporated)

B260A - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS (LITE-ON)

B260A - Schottky Barrier Rectifier (Kexin)

B260A - SCHOTTKY BARRIER RECTIFIERS (TASUND)

B260A - Surface Mount Schottky Barrier Rectifiers (LGE)

B260 - 2 AMP SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (Fuji Electric)

B260 - 2.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (Diodes Incorporated)

B260 - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS (LITE-ON)

B260D - TDA1060 (Tesla)

B260W-S - 2A Surface Mount Schottky Barrier Rectifiers (CITC)

Full PDF Text Transcription

Click to expand full text

AADDVVAANNNCECEEEWIWDNPPIFRRNOOFORDDOMUURACCMTTTIAOT INO N B250AF-B260AF 2.0A SCHOTTKY BARRIER RECTIFIER Product Summary B250AF/B260AF VRRM (V) 50 60 IO (A) 2 2 VF(MAX) (V) @ +25°C 0.65 0.65 IR(MAX) (mA) @ +25°C 0.10 0.20 Description and Applications The Schottky rectifier providing low VF and excellent reverse leakage stability at high temperatures, this device is ideal for use in general rectification applications such as:  Boost Diode  Blocking Diode  Recirculating Diode Features and Benefits  Reduced Low Forward Voltage Drop (VF); Better Efficiency and Cooler Operation  Reduced High-Temperature Reverse Leakage; Increased Reliability against Thermal Runaway Failure in High Temperature Operation  Lead-Free Finish; RoHS Compliant (Notes 1 & 2)  Halogen and Antimony Free.
