B260S1FX - 2A TRENCH SCHOTTKY BARRIER RECTIFIER

B260S1FX Description

B260S1FX Green 2A TRENCH SCHOTTKY BARRIER RECTIFIER Product Summary (@ TA = +25°C) VRRM (V) 60 IO (A) 2 VF Max (V) 0.60 IR Max (µA) 200 Descript.
and Applications For use in low-voltage, high-frequency inverters, freewheeling, DCDC converters and polarity applications.

B260S1FX Features

* Low-Leakage Current
* Soft, Fast Switching Capability
* +150°C Operating Junction Temperature
* Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free. “Green” Device (Note 3)

📥 Download Datasheet

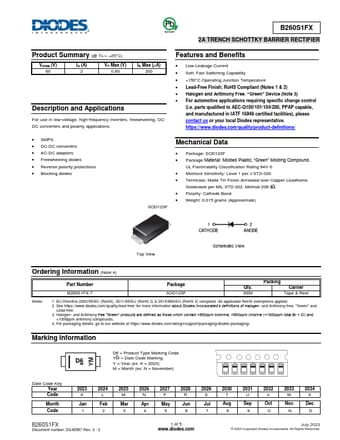

Preview of B260S1FX PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
B260S1FX
Manufacturer
DIODES ↗
File Size
579.23 KB
Datasheet
B260S1FX-DIODES.pdf
Description
2A TRENCH SCHOTTKY BARRIER RECTIFIER
