B260BE - 2.0A SCHOTTKY BARRIER RECTIFIER

This page provides the datasheet information for the B260BE, a member of the B260AE 2.0A SCHOTTKY BARRIER RECTIFIER family.

Datasheet Summary

Description

and Applications Mechanical Data The Schottky rectifier providing low VF and excellent reverse leakage stability at high temperatures, this device is ideal for use in general rectification applications such as: Boost Diode Blocking Diode Recirculating Diode Case: SMA, SMB

Features

Reduced Low Forward Voltage Drop (VF); Better Efficiency and Cooler Operation.
Reduced High-Temperature Reverse Leakage; Increased Reliability against Thermal Runaway Failure in High Temperature Operation.
Lead-Free Finish; RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
For automotive.

Datasheet Details

Part number	B260BE
Manufacturer	DIODES
File Size	441.90 KB
Description	2.0A SCHOTTKY BARRIER RECTIFIER
Datasheet	B260BE Datasheet
Additional preview pages of the B260BE datasheet.

📁 Similar Datasheet

B260 - 2 AMP SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (Fuji Electric)

B260 - 2.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (Diodes Incorporated)

B260 - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS (LITE-ON)

B260A - 2.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (Diodes Incorporated)

B260A - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS (LITE-ON)

B260A - Schottky Barrier Rectifier (Kexin)

B260A - SCHOTTKY BARRIER RECTIFIERS (TASUND)

B260A - Surface Mount Schottky Barrier Rectifiers (LGE)

B260D - TDA1060 (Tesla)

B260W-S - 2A Surface Mount Schottky Barrier Rectifiers (CITC)

Full PDF Text Transcription

Click to expand full text

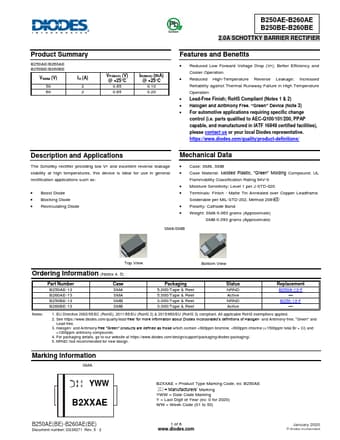

B250AE-B260AE B250BE-B260BE Green 2.0A SCHOTTKY BARRIER RECTIFIER Product Summary B250AE/B260AE B250BE/B260BE VRRM (V) 50 60 IO (A) 2 2 VF(MAX) (V) @ +25°C 0.65 0.65 IR(MAX) (mA) @ +25°C 0.10 0.20 Features and Benefits  Reduced Low Forward Voltage Drop (VF); Better Efficiency and Cooler Operation  Reduced High-Temperature Reverse Leakage; Increased Reliability against Thermal Runaway Failure in High Temperature Operation  Lead-Free Finish; RoHS Compliant (Notes 1 & 2)  Halogen and Antimony Free. “Green” Device (Note 3)  For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative. https://www.diodes.
