B260AX - 2A TRENCH SCHOTTKY BARRIER RECTIFIER

B260AX Description

NEW PRODUCT B260AX Green 2A TRENCH SCHOTTKY BARRIER RECTIFIER SMA Product Summary (@ TA = +25°C) VRRM (V) 60 IO (A) 2 VF (Max) (V) 0.52 IR (Max).

B260AX Features

* Low Leakage Current
* Soft, Fast Switching Capability
* +150°C Operating Junction Temperature
* Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free. “Green” Device (Note 3)

B260AX Applications

* For use in low-voltage, high-frequency inverters, freewheeling, DC-DC converters, and polarity applications.
* SMPS
* AC-DC
* DC-DC converters
* Freewheeling diodes
* Reverse polarity protections

📥 Download Datasheet

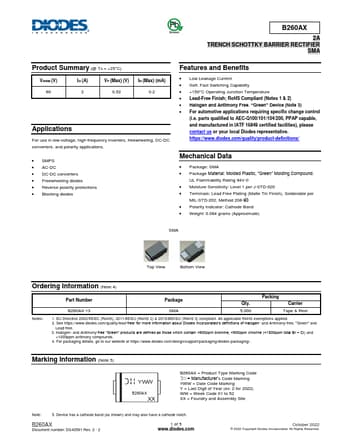

Preview of B260AX PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
B260AX
Manufacturer
DIODES ↗
File Size
594.51 KB
Datasheet
B260AX-DIODES.pdf
Description
2A TRENCH SCHOTTKY BARRIER RECTIFIER
