DMG1012UWQ, N-CHANNEL ENHANCEMENT MODE MOSFET

DMG1012UWQ N-CHANNEL ENHANCEMENT MODE MOSFET Product Summary BVDSS 20V RDS(ON) Max 0.45Ω @ VGS = 4.5V 0.6Ω @ VGS = 2.5V 0.75Ω @ VGS = 1.8V ID Max .
and Applications This MOSFET has been designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, making it id.

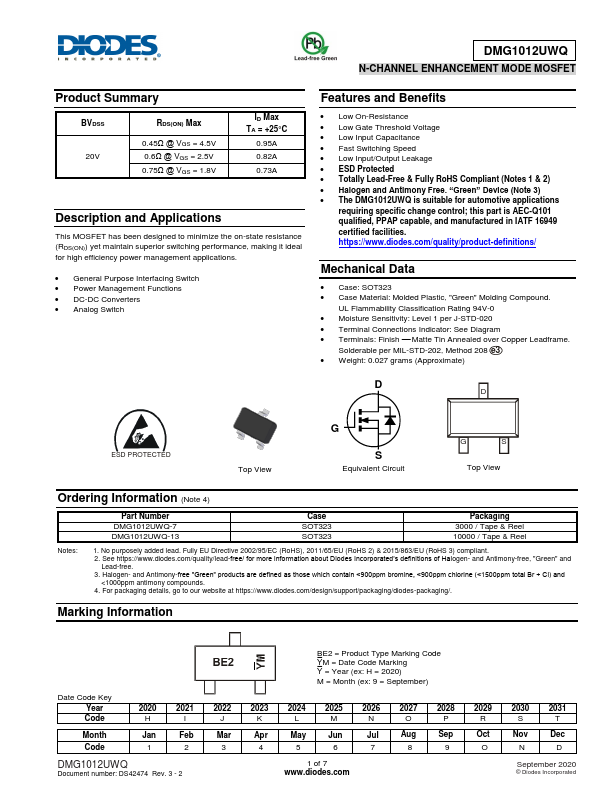

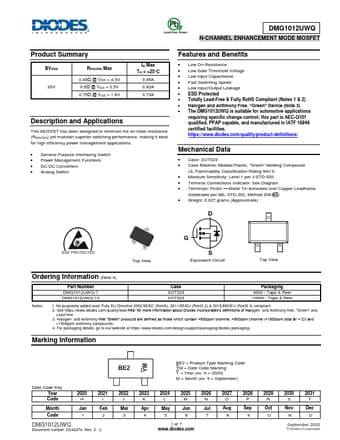

datasheet Preview Page 1 from Datasheet4u.com

DMG1012UWQ-DIODES.pdf

DMG1012UWQ Datasheet Preview — Preview of DMG1012UWQ PDF

Datasheet Details

Part number:

DMG1012UWQ

Manufacturer:

DIODES ↗

File Size:

525.83 KB

Description:

N-CHANNEL ENHANCEMENT MODE MOSFET

Features

* Low On-Resistance
* Low Gate Threshold Voltage
* Low Input Capacitance
* Fast Switching Speed
* Low Input/Output Leakage
* ESD Protected
* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free. “Green” Device (Note 3)
* The DMG1012UW

Applications

* This MOSFET has been designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, making it ideal for high efficiency power management applications.
* General Purpose Interfacing Switch
* Power Management Functions
* DC-DC Converters
* Analog Sw
