DMG1013UW - P-Channel MOSFET

Diodes

📥 Download Datasheet

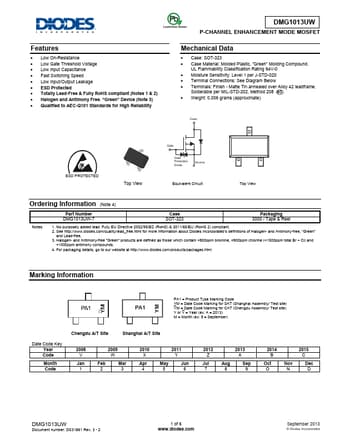

DMG1013UW Datasheet Preview — Preview of DMG1013UW PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	DMG1013UW
Manufacturer	DIODES ↗
File Size	204.97 KB
Description	P-Channel MOSFET
Datasheet	DMG1013UW-Diodes.pdf

DMG1013UW Product details

Features

Low On-Resistance.
Low Gate Threshold Voltage.
Low Input Capacitance.
Fast Switching Speed.
Low Input/Output Leakage.
ESD Protected.
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
Qualified to AEC-Q101 Standards for High Reliability Mechanical Data.
Case: SOT-323.
Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0.
Moisture S.
